Vortex Motor
Vortex Motor

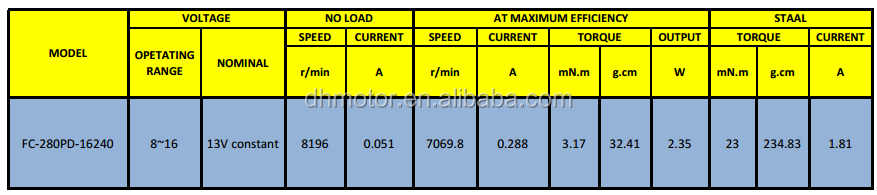

| Place of Origin | Guangdong China (Mainland) | Model Number | FC-280PD-16240 |
| Usage | Automotive / Car | Certification | ROHS |
| Type | Micro Motor | Torque | 234G.CM at stall |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Closed | Speed(RPM) | 8200rpm (No load) |
| Continuous Current(A) | 0.288A | Output Power | 2.3 W |
| Voltage(V) | 13V | Efficiency | IE 1 |
| Bearing Type | Oil-impregnated bearing | End Cap | Plastic End Cap |
| Stator and Slots | 2-Pole stator and 3-Slot armature | Brush Type | Carbon brushes |
| Rotation | Reversible | - | - |
| Packaging Details | 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM |
| Delivery Detail | Within 30 days |
Dedicated to the development and production of micro motors since 2003, specializing in four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors. Our products are widely utilized in consumer electronics, household appliances, office automation, medical equipment, power tools, and automotive fields.
